Engineering Services
CADTRU Solutions provides comprehensive multi-disciplined engineering services including conceptual design, front-end engineering design, and detailed engineering and design services.
We provide world class services to our clients across the globe with our highly professional teams by following best industry practices and adhering to international society codes.
Conceptual Design

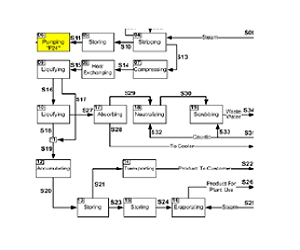

CADTRU Solutions define the project requirements before initiating a capital investment. During conceptualization stage we evaluate processes to assess its technical feasibility, economical viability and operational ease. Based on these considerations, we develop optimized process scheme along with the process flow diagram and the heat and material balance for the facility.
Front-end Engineering (FEED)
We prepare the Front-End Engineering Design (FEED) packages which include:
- Design and Process Scheme
- Material Selection Basis
- Process Description
- Equipment list and Line list
- Equipment Process Datasheets
- P&IDs
- Instrument Process Datasheets
- Conceptual Equipment Layout
Detailed Engineering
We offer the complete solution to the detailed engineering requirement. Our services for the various disciplines include:
- Process Engineering
- Equipment Engineering
- Piping Design

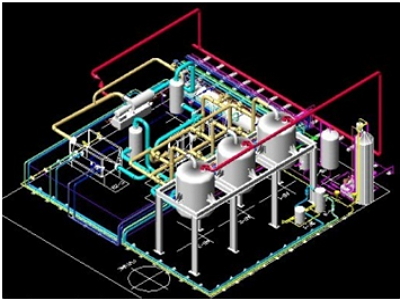

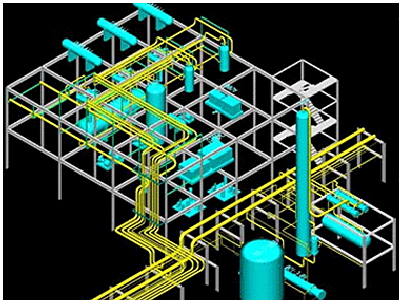

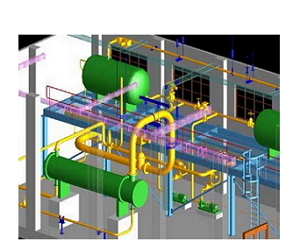

- 3D Plant modeling
- Pipe Stress Analysis
- Instrument Engineering
- Instrument Process Datasheets
- Structural Design & Engineering
We are specialized in:

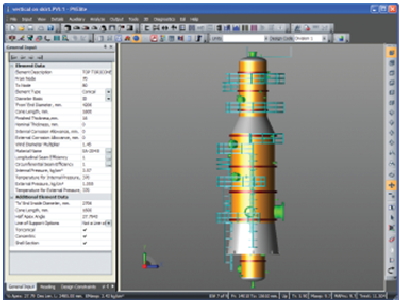

- Pressure vessels and heat exchangers design and analysis using international standard codes.
- Piping Layout / Plant Layout.
- Structural Analysis.

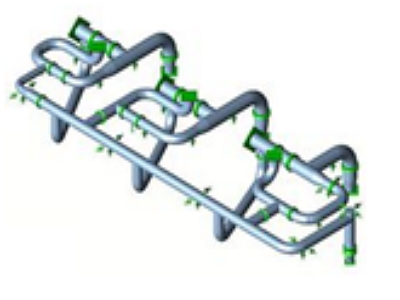

- Pipe Stress & Flexibility Analysis.
- Static Equipment Design and Analysis.
- Water Hammer and Surge Analysis.
- Hydraulic fluid flow calculations.
- Pipe Supports design and detailing.
